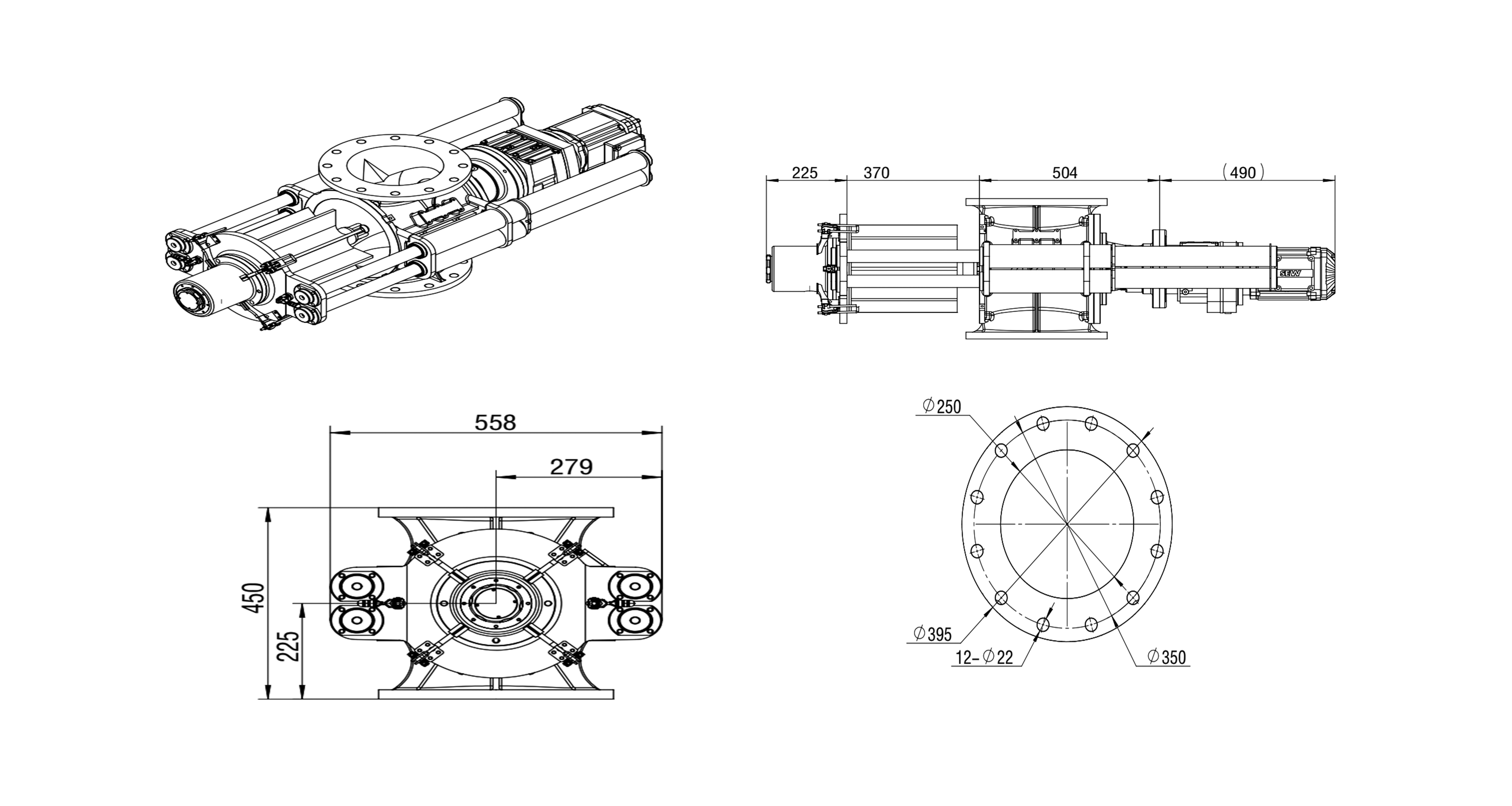

Quick Clean Rotary Airlock Valve

Output G Calculation Formula

G = 0.06 VnKρ (t/h)
In the formula: V—- volume of rotary valve (L) n—- speed (r/min) ρ—- bulk density of material (t/m³) K—The filling factor
is 0.6~0.8 for particles and 0.4~0.6 for powder For example：a 9L flour pneumatic conveying rotary valve output：
G=0.06*9*53*0.5*0.5=7.155（t/h）
